Reviewed by Andrew, 4WD Suspension fitment team

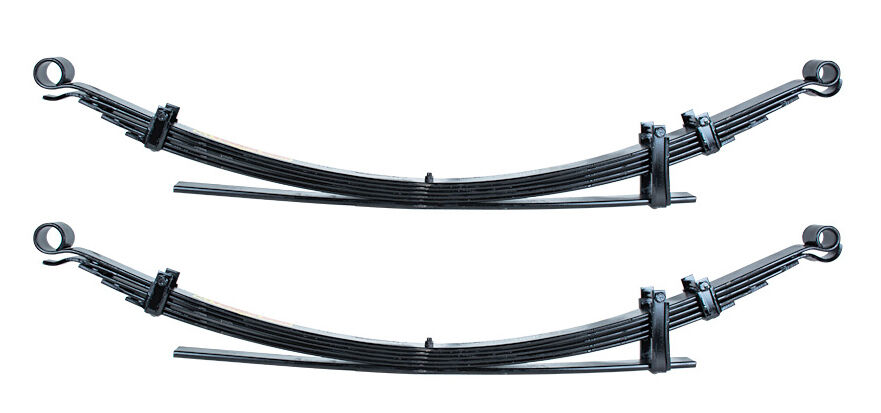

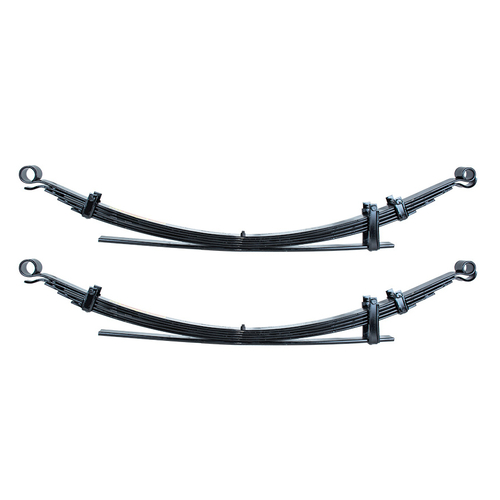

Tough Dog raised rear leaf springs for the Mitsubishi Triton MV (2023 onwards), approximately 40mm of lift, sold per pair with front eye bushes fitted. Select 0-300kg for mixed use, Constant 300kg or Constant 500kg for permanent loads.
Add U-bolts, greasable shackles and pins, shackle bushes, the transmission stabiliser or Air Assist bellows airbags from the options below.
These are progressive-rate packs – every leaf sits in contact along its full length with the leaf above, which is what keeps the unladen ride tolerable on a working ute.
Two-stage packs carry a lighter primary stage for everyday ride quality, with heavier second-stage leaves that only come into play as the load goes on – that's what stops the rear sagging with a canopy, tools or a camper on the back. Choose the rating by the constant load the vehicle carries, counting only permanent weight.
The matching U-bolts, greasable shackles and pins, and bush kits are available from the option dropdowns on this page – if the originals have been on since new, replace them while the pack is out rather than reusing stretched U-bolts.
Doing the whole vehicle at once? We also stock the matching front Coil Springs and assembled Front Struts for the Mitsubishi Triton MV 2023-On.
Pair with Tough Dog rear shocks.
| Make | Model | Series | Years |
|---|---|---|---|
| Mitsubishi | Triton | MV - 4x4 Double/Single/Club Cab (GLX, GLX+, GLX-R, GLS, GSR) | 2023 - On |
Choose the load rating for the weight the vehicle carries most of the time, counting only permanent fitments such as a bar, winch, canopy or drawers. A heavier rating than you need rides firm when unloaded; a lighter one sags once the gear goes in.
| Part number | Lift | Load rating | Suits / notes |
|---|---|---|---|
| T92C | 40 mm | 0-300 kg | - |
| T92L | 40 mm | Constant 300 kg | - |
| T92LL | 40 mm | Constant 500 kg | - |
Leaf springs are replaced as a pair with the axle supported, the U-bolts removed and the spring unbolted from the front hanger and rear shackle. Fit new U-bolts, and replace worn shackle bushes and pins at the same time. Torque U-bolts to spec and re-check them after the first few hundred kilometres. Raised springs need shock absorbers with the correct extended length for the new ride height. In most states a suspension lift of up to 50 mm is allowed without certification under VSB14; larger lifts can require engineering approval, so check the rules for your state.
Last updated: 10 September 2026
Genuine Tough Dog suspension from an authorised Australian dealer.
New to Triton suspension? Read our Triton suspension problems guide.
| Specification | Detail |
|---|---|
| Brand | Tough Dog |
| Type | Rear leaf springs |
| Position | Rear axle |
| Sold as | Pair (both sides) |
| Vehicle | Mitsubishi Triton MV 2023-On |
| Lift options | 40 mm |
| Load ratings | 0-300 kg, Constant 300 kg, Constant 500 kg |
| Part numbers | T92C, T92L, T92LL |
| Construction | Designed and made in Australia from micro-alloyed spring steel; shot-peened, scragged and load-tested |
| Fitting hardware | New U-bolts recommended; bush and shackle kits available as options |
Load ratings refer to permanent extra weight over the axle. Springs do not change the vehicle's GVM or towing capacity.
0-300kg (T92C) suits daily driving with variable loads. CONSTANT 300kg (T92L) and CONSTANT 500kg (T92LL) are for weight that never leaves the ute. Constant-load springs ride firm when empty.
Yes - Tough Dog notes the transmission stabiliser (TDSP-039) must be fitted to all lift kits on this model. Add it from the options above.
Tough Dog does not offer OE-height airbags for the Triton MV due to a vibration issue - only the 40mm-lift bellows kit (TDAA-143) is available, matching these raised springs.
These suit the following applications: Mitsubishi Triton MV - 4x4 Double/Single/Club Cab (GLX, GLX+, GLX-R, GLS, GSR) 2023 - On. Check your build date and variant against the fitment table on this page – if you're not certain, contact us with your rego or VIN details and we'll confirm fitment before you order.
The options on this listing are: 40 mm. Lift is measured at ride height with the vehicle's normal load. Raised springs need matching shock absorbers with the correct extended length.
Yes. The price covers both Tough Dog springs, one for each side.
