Reviewed by Andrew, 4WD Suspension fitment team

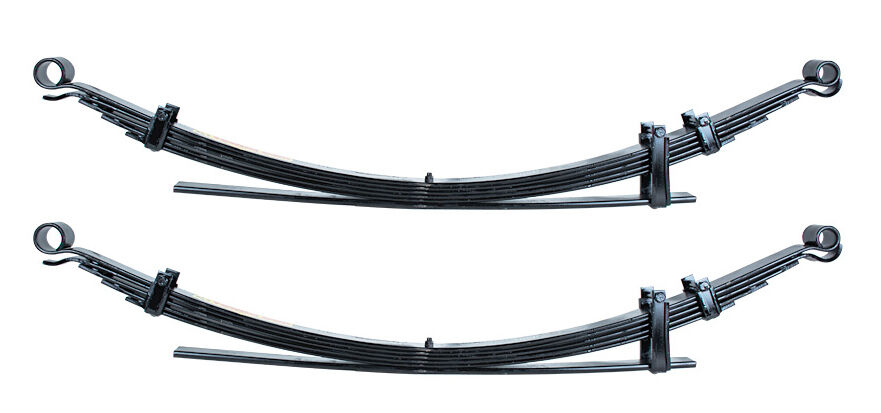

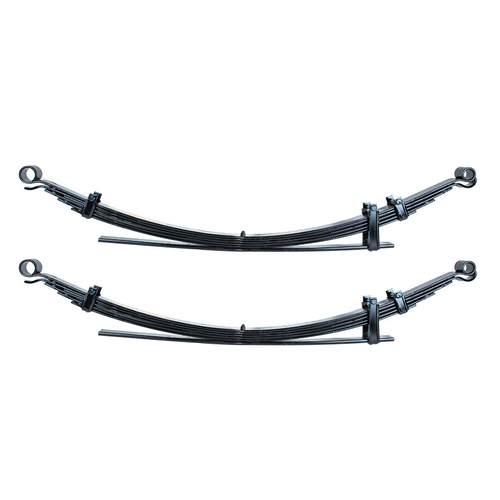

Tough Dog rear leaf springs for the Jeep Cherokee XJ (April 1994 - 2001), approximately 35mm raised, rated for 0-300kg loads. Sold as a pair - one left hand (FS025H-LH) and one right hand (FS025H-RH) spring pack, exactly as Tough Dog specifies. Add U-bolts, the urethane shackle bush kit and transmission spacers from the options.
Tough Dog leaf springs are a genuinely progressive design: each leaf is set slightly proud of the one above it, so the leaves stay in contact along their whole length instead of slapping together under load.
Two-stage packs carry a lighter primary stage for everyday ride quality, with heavier second-stage leaves that only come into play as the load goes on – that's what stops the rear sagging with a canopy, tools or a camper on the back. Choose the rating by the constant load the vehicle carries, counting only permanent weight.
The matching U-bolts, greasable shackles and pins, and bush kits are available from the option dropdowns on this page – if the originals have been on since new, replace them while the pack is out rather than reusing stretched U-bolts.
Doing the whole vehicle at once? We also stock the matching front Coil Springs and front Shocks for the Jeep Cherokee XJ 1994-2001.
Matching rear shocks complete the rear end.
| Make | Model | Series | Years | Position |
|---|---|---|---|---|
| Jeep | Cherokee | XJ (Limited, Sport) | April 1994 - 2001 | Rear |
Leaf springs are replaced as a pair with the axle supported, the U-bolts removed and the spring unbolted from the front hanger and rear shackle. Fit new U-bolts, and replace worn shackle bushes and pins at the same time. Torque U-bolts to spec and re-check them after the first few hundred kilometres. In most states a suspension lift of up to 50 mm is allowed without certification under VSB14; larger lifts can require engineering approval, so check the rules for your state.
Last updated: 10 September 2026
Genuine Tough Dog suspension from an authorised Australian dealer.
New to Wrangler and Gladiator suspension? Read our Wrangler and Gladiator suspension problems guide.
| Specification | Detail |
|---|---|
| Brand | Tough Dog |
| Type | Rear leaf springs |
| Position | Rear axle |
| Sold as | Pair (both sides) |
| Vehicle | Jeep Cherokee XJ 1994-2001 |
| Lift options | 35 mm |
| Part numbers | FS025H-LH-RH |
| Construction | Designed and made in Australia from micro-alloyed spring steel; shot-peened, scragged and load-tested |
| Fitting hardware | New U-bolts recommended; bush and shackle kits available as options |
Load ratings refer to permanent extra weight over the axle. Springs do not change the vehicle's GVM or towing capacity.
Yes - Tough Dog specifies the TDSP-002 transmission spacer kit must be fitted with all XJ lift kits to maintain driveline angles. Select it in the options.
These suit the following applications: Jeep Cherokee XJ (Limited, Sport) April 1994 - 2001 Rear. Check your build date and variant against the fitment table on this page – if you're not certain, contact us with your rego or VIN details and we'll confirm fitment before you order.
Match the rating to the weight the vehicle carries all the time – count only permanent additions (bar, winch, canopy, drawers, long-range tank), not luggage or towball weight. The options on this page cover 0-300kg. If the vehicle is mostly unloaded, stay at the lighter end; going too firm hurts the unladen ride. Still unsure? Send us your setup and we'll confirm the right spring.
The listed price covers both sides – always replace left and right together so the axle is evenly damped and sprung. It's a bolt-in job for a competent home mechanic or any workshop; check bushes, mounts and brake-line slack while everything is apart.
Yes. The price covers both Tough Dog springs, one for each side.
If you are changing ride height, yes. Shocks are built for a specific travel range, and a lift moves the axle outside the factory shock's range. If you are replacing springs at standard height, existing shocks in good condition can stay.
