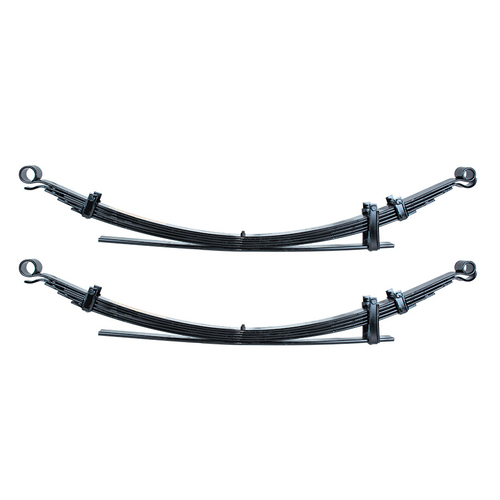

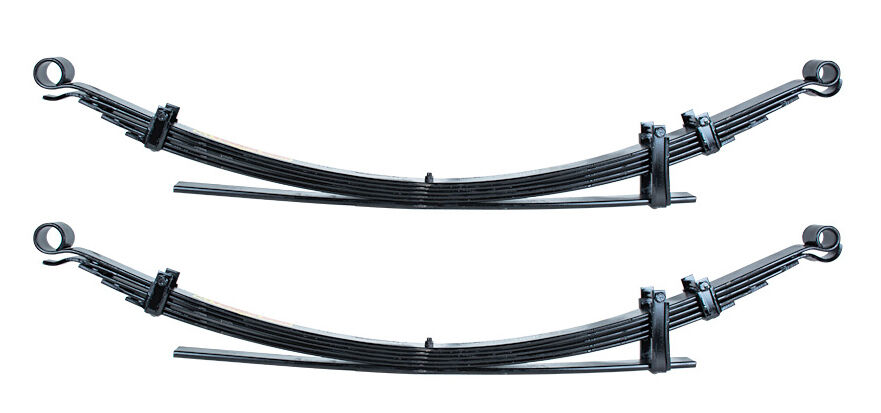

Tough Dog rear leaf springs for the wide-track Toyota Hilux Rogue Widebody (approx 40mm lift) and GR Sport (approx 20mm lift), sold per pair. Pick the spring rated for your constant load, then add the wide-track U-bolts, greasable shackle & pins, shackle bush kit and air assist bellows below.
Tough Dog leaf springs are a genuinely progressive design: each leaf is set slightly proud of the one above it, so the leaves stay in contact along their whole length instead of slapping together under load.
Two-stage packs carry a lighter primary stage for everyday ride quality, with heavier second-stage leaves that only come into play as the load goes on – that's what stops the rear sagging with a canopy, tools or a camper on the back. Choose the rating by the constant load the vehicle carries, counting only permanent weight.
The matching U-bolts, greasable shackles and pins, and bush kits are available from the option dropdowns on this page – if the originals have been on since new, replace them while the pack is out rather than reusing stretched U-bolts.
Doing the whole vehicle at once? We also stock the matching front Coil Springs and assembled Front Struts for the Toyota Hilux Rogue Widebody & GR Sport.
Match them with Tough Dog rear shocks.
| Make | Model | Series | Years | Est. Lift |
|---|---|---|---|---|
| Toyota | Hilux | Rogue Widebody | 08/2022 - 11/2025 | 40mm |
| Toyota | Hilux | GR Sport Wide Track | 2023 - 11/2025 | 20mm |
Choose the load rating for the weight the vehicle carries most of the time, counting only permanent fitments such as a bar, winch, canopy or drawers. A heavier rating than you need rides firm when unloaded; a lighter one sags once the gear goes in.
| Part number | Lift | Load rating | Suits / notes |
|---|---|---|---|
| T81C | 40 mm | 0-300 kg | - |
| T81L | 40 mm | Constant 300 kg | - |
| T81LL | 40 mm | Constant 500 kg | - |
| T81XHD | 40 mm | Constant 800 kg | - |
Leaf springs are replaced as a pair with the axle supported, the U-bolts removed and the spring unbolted from the front hanger and rear shackle. Fit new U-bolts, and replace worn shackle bushes and pins at the same time. Torque U-bolts to spec and re-check them after the first few hundred kilometres. Raised springs need shock absorbers with the correct extended length for the new ride height. In most states a suspension lift of up to 50 mm is allowed without certification under VSB14; larger lifts can require engineering approval, so check the rules for your state.
Last updated: 10 September 2026
Genuine Tough Dog suspension from an authorised Australian dealer.
New to Hilux suspension? Read our Hilux suspension problems guide.
| Specification | Detail |
|---|---|
| Brand | Tough Dog |
| Type | Rear leaf springs |
| Position | Rear axle |
| Sold as | Pair (both sides) |
| Vehicle | Toyota Hilux Rogue Widebody & GR Sport |
| Lift options | 40 mm |
| Load ratings | 0-300 kg, Constant 300 kg, Constant 500 kg, Constant 800 kg |
| Part numbers | T81C, T81L, T81LL, T81XHD |
| Construction | Designed and made in Australia from micro-alloyed spring steel; shot-peened, scragged and load-tested |
| Fitting hardware | New U-bolts recommended; bush and shackle kits available as options |
Load ratings refer to permanent extra weight over the axle. Springs do not change the vehicle's GVM or towing capacity.
These suit the following applications: Toyota Hilux Rogue Widebody 08/2022 - 11/2025 40mm; Toyota Hilux GR Sport Wide Track 2023 - 11/2025 20mm. Check your build date and variant against the fitment table on this page – if you're not certain, contact us with your rego or VIN details and we'll confirm fitment before you order.
Match the rating to the weight the vehicle carries all the time – count only permanent additions (bar, winch, canopy, drawers, long-range tank), not luggage or towball weight. The options on this page cover 0-300kg, Constant 800kg. If the vehicle is mostly unloaded, stay at the lighter end; going too firm hurts the unladen ride. Still unsure? Send us your setup and we'll confirm the right spring.
The listed price covers both sides – always replace left and right together so the axle is evenly damped and sprung. It's a bolt-in job for a competent home mechanic or any workshop; check bushes, mounts and brake-line slack while everything is apart.
A moderate suspension lift is generally acceptable in most Australian states, but the allowed total lift and whether certification is needed differ between states and change over time – so always confirm with your state’s transport authority before modifying. Our guide explains how the rules work state by state: are lift kits legal in Australia?
Yes. The price covers both Tough Dog springs, one for each side.
If you are changing ride height, yes. Shocks are built for a specific travel range, and a lift moves the axle outside the factory shock's range. If you are replacing springs at standard height, existing shocks in good condition can stay.
