The Airbag Man Air Helper Kit (SKU CR5102) fits inside the factory rear coil springs on Suzuki Vitara models built before 2005, adding adjustable load support from 5 to 100 PSI. It stops rear sag under camper trailers, roof-top tents or water tanks without changing your unladen ride height, and installs in around 120 minutes using the supplied brackets and Schrader valve — no need to pull your coil springs apart. Check exact fitment for your build using our Suzuki Vitara parts finder. Backed by manufacturer warranty and in stock now for fast Australia-wide dispatch.
Airbag Man helper kits use coil-insert air springs that sit inside the existing coils – add air when the load goes on to bring the vehicle back level, then let it out and the standard springs carry on exactly as before. Because each side inflates independently, you can also correct for an off-centre load like a slide-on or water tank.
They shine when the load keeps changing – a van on the towball some weekends, a loaded tray on others. Worth being clear about what they don't do: helper airbags don't increase your GVM or payload; they manage ride height and stability within the vehicle's existing ratings. If the vehicle is always loaded, upgraded springs (with airbags for the variation on top) is the better setup.
Doing the whole vehicle at once? We also stock the matching front Coil Springs and rear Coil Springs for the Suzuki Vitara Pre 2005.
Browse all compatible suspension parts for your Air Helper Kit Suzuki Vitara Pre 2005 using our parts finder.
This kit doesn't come in different spring rates — it's an air-adjustable helper that works with whatever coil spring rate is already fitted to your Vitara. Instead of choosing a rate, you dial in PSI to suit the load: start around 10-15 PSI for light gear and wind up toward 100 PSI for a loaded camper trailer or full water tank. Common accessories that push pressure needs up include roof-top tents, rear bar and spare wheel combinations, dual battery trays and towed camper trailers.
This is an Easy Fit job for an experienced DIYer with basic hand tools, and Airbag Man rates install time at around 120 minutes. The airbags sit inside the existing coil springs on supplied brackets, so no suspension disassembly or wheel alignment is required after fitting. Before installing, it's worth inspecting your shock absorbers for wear, since airbags work best alongside dampers that are still in good condition. If you're planning heavier accessory loads long-term, also look at whether upgraded control arms or other suspension components suit your setup.
Airbag Man has been building air suspension products for Australian conditions for over 25 years, supplying tourers, tradespeople and caravan owners with load support kits designed around local roads and loads. Kits are backed by manufacturer warranty and supported through a national dealer network, including our team's fitment advice. You can view the full Airbag Man range for other load-carrying and lift solutions.
This helper kit suits Vitara owners who regularly tow a camper trailer, carry roof-top tents or haul tools and gear, but still want a comfortable, unladen ride the rest of the time. It's a common fit for grey nomads, weekend tourers and tradies who need adjustable support rather than a permanent lift. For heavier or more permanent load-carrying needs, browse our wider airbag suspension range.
In stock now at 4WD Suspension Australia with fast dispatch nationwide. Our team can help confirm fitment for your specific Vitara before you order, and you can browse our full lift kit range if you're after more than a helper kit.
| Make | Model | Series | Years |
|---|---|---|---|
| Suzuki | Vitara | All models with rear coil springs | Pre 2005 |
Not sure if this fits your vehicle? Contact our suspension experts or check our FAQ page.
Note: Air compressor or manual pump required for inflation (sold separately). Optional in-cab inflation systems and wireless pressure monitoring available separately.
Genuine Airbag Man suspension from an authorised Australian dealer.
This Airbag Man kit (SKU CR5102) is built for Suzuki Vitara models manufactured before 2005 that use rear coil springs. It installs inside the factory coil spring, so it suits standard-height vehicles as supplied. If your Vitara has already been fitted with aftermarket coil springs, check the spring internal diameter with our team first. Contact our suspension experts or use the Suzuki Vitara parts finder to confirm fitment before ordering.
This is a helper kit, not a lift kit, so it doesn't raise the Vitara's unladen ride height. Instead, it uses adjustable air pressure from 5-100 PSI to stop the rear coils from sagging once you add load, such as a camper trailer or roof-top tent. When deflated, the vehicle sits back on its standard coil springs. If you're after a permanent lift, look at our broader lift kit range instead of a helper kit.

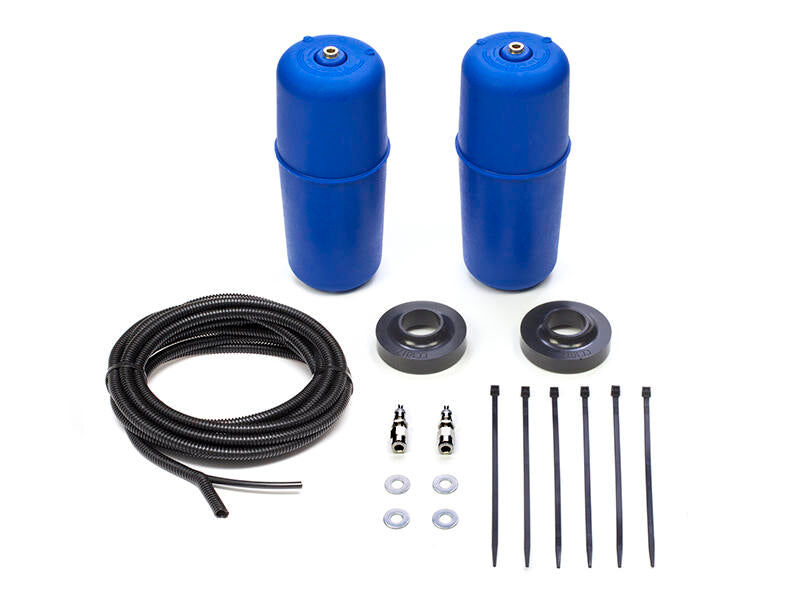

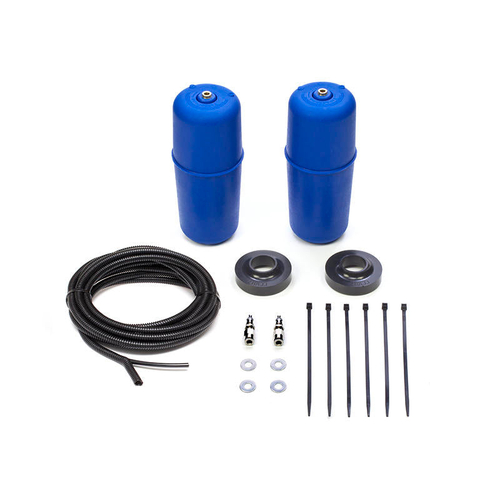

The kit includes two Airbag Man rubber air bags sized for the rear coil spring cavity, mounting brackets and hardware, nylon air lines, push-in fittings and a Schrader inflation valve. Fitting instructions with diagrams are supplied and also available via QR code. Coil springs themselves are not included, since the bags work inside your existing factory or aftermarket springs.
Yes, this is one of the main reasons Vitara owners fit it. Increasing pressure toward the upper end of the 5-100 PSI range helps counter the extra load a towbar and trailer put on the rear coils, reducing sag and keeping the vehicle sitting level. It won't increase your Vitara's rated towing capacity, so always check your GCM and towbar rating separately.
No, control arm upgrades aren't required for this helper kit since it doesn't change ride height or suspension geometry. Control arms are more relevant if you're fitting a lift kit that alters CV or driveshaft angles. If you later add a lift kit alongside this airbag kit, that's when it's worth reviewing control arm options.
No wheel alignment is required after installing this helper kit, because it doesn't alter the vehicle's static ride height or suspension geometry. The airbags simply add adjustable support inside the existing coil springs. It's still good practice to have your alignment checked periodically as part of normal vehicle servicing.
This kit doesn't come in different spring rate options because it's an air-adjustable helper, not a spring. Instead of selecting a rate, you set the PSI to suit your load — lower pressure for light gear, higher pressure up to 100 PSI for heavier camper trailer or water tank loads. Your factory or aftermarket coil spring rate stays as it is; the airbag simply supplements it under load.
No, this kit doesn't create extra tyre clearance because it doesn't raise unladen ride height. If you're planning to fit larger tyres, you'll need a genuine lift kit rather than an air helper kit. Feel free to contact our team to discuss lift options if bigger tyres are part of your plan.
This Airbag Man kit is covered by manufacturer warranty against defects in materials and workmanship. Exact terms are outlined in the documentation supplied with the kit and on the Airbag Man website. Our team can help with warranty queries or fitment issues after purchase — just get in touch through our contact page.
Yes. Left deflated, the Vitara rides on its standard coil springs as normal for daily driving. When you're loading up for a trip or hitching a trailer, you inflate the bags to suit the load, then deflate them again once you're back to unladen driving. This reversibility is one of the main reasons owners choose a helper kit over a permanent spring change.
