Reviewed by Andrew, 4WD Suspension fitment team

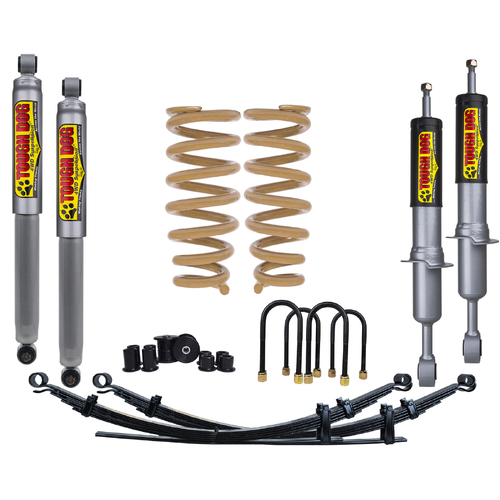

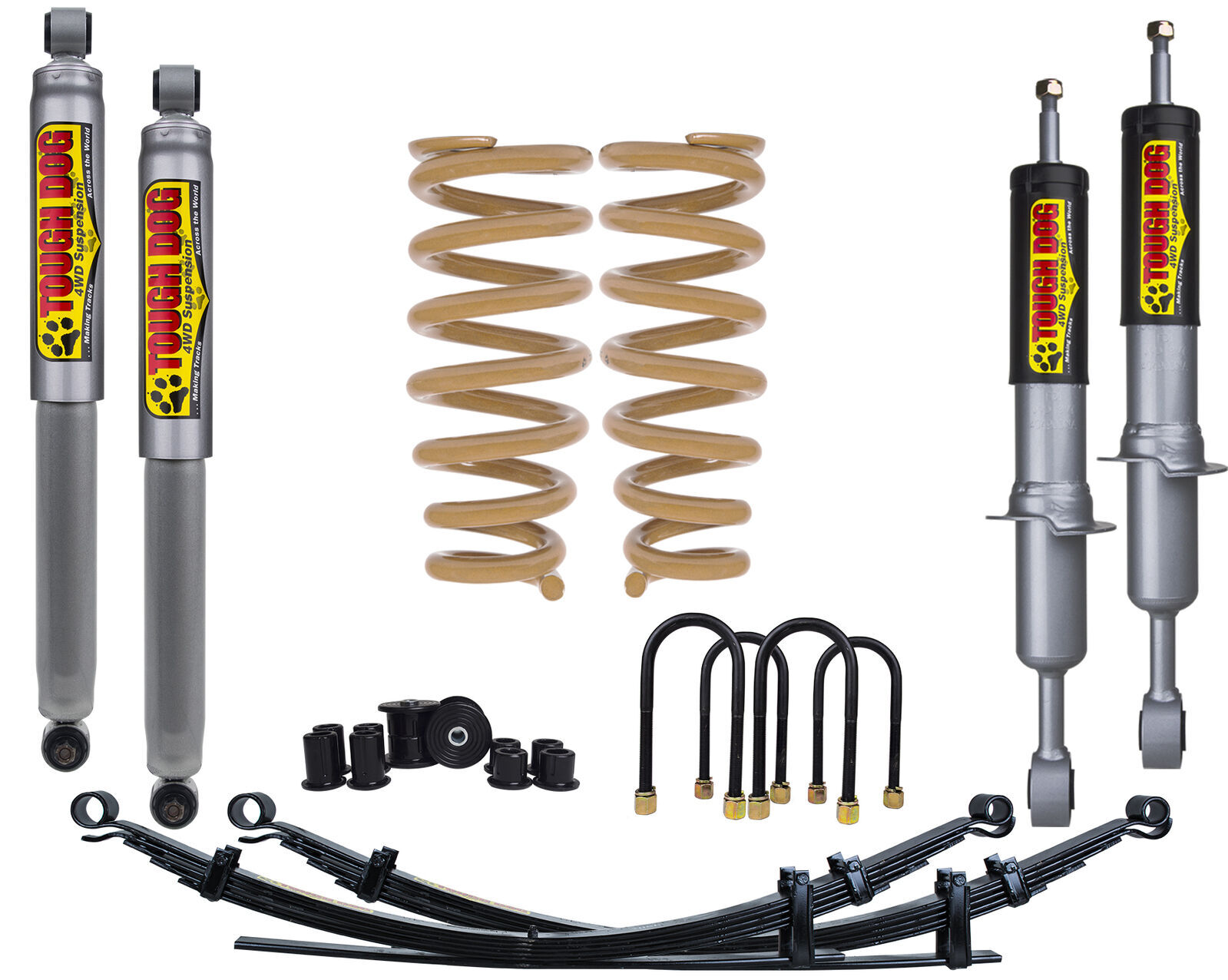

This complete Tough Dog suspension kit for the Toyota Hilux GR Sport widebody (2023 - 2025) lifts the vehicle approximately 20mm front and rear. The front struts and raised coils bring the nose up and add control under a bar and winch, while the rear leaf packs are rated to the load the tub or tray carries every day. Every part in the kit is a Tough Dog component selected for this vehicle, and the dropdowns let you set the shock type and spring rates to suit how the vehicle is used.
Prefer to buy the parts separately? We stock the matching Tough Dog assembled front struts, front struts, front coil springs, rear leaf springs and rear shocks for the Toyota Hilux GR Sport 2023-2025.
Browse every compatible part with our Toyota Hilux parts finder.
| Component | Part | Qty |
|---|---|---|
| Front struts | Tough Dog Front Struts Toyota Hilux Rogue Widebody & GR Sport | 2 |
| Front coil springs | Tough Dog Front Coil Springs Toyota Hilux Rogue Widebody & GR Sport | 2 |
| Rear leaf springs | Tough Dog Rear Leaf Springs Toyota Hilux Rogue Widebody & GR Sport | 2 |
| Rear shock absorbers | Tough Dog Rear Shock Absorbers Toyota Hilux Rogue Widebody & GR Sport | 2 |
| Rear U-bolt kit | Tough Dog | 1 kit |
| Rear leaf spring bush kit | Tough Dog | 1 kit |
The base kit is supplied with Foam Cell Front & Rear shocks; you can step up to Foam Cell Front, Adjustable Rear (+ $60.00), Adjustable Front & Rear (+ $190.00) from the dropdown. Choose front springs in Comfort - No Accessories / Constant - Suit Bar &/or Winch and rear springs in 0-300kg Load / Constant 300kg Load / Constant 500kg Load / Constant 800kg Load to match the gear your vehicle carries permanently.
| Option | Choices |
|---|---|
| Shock Configuration | Foam Cell Front & Rear / Foam Cell Front, Adjustable Rear (+ $60.00) / Adjustable Front & Rear (+ $190.00) |
| Front Spring Rate | Comfort - No Accessories / Constant - Suit Bar &/or Winch |
| Rear Spring Rate | 0-300kg Load / Constant 300kg Load (+ $100.00) / Constant 500kg Load (+ $140.00) / Constant 800kg Load (+ $230.00) |
| Greasable Shackles & Pins | Not Required / Yes - Greasable Shackles & Pins (+ $195.00) |
| Pre-Assembled Front Struts | Not Required / Yes (+ $180.00) |
| Upper Control Arms | Not Required / Yes (+ $800.00) |
Rate the springs to the weight the vehicle carries all the time: a steel bull bar, winch, canopy, drawers, long-range tank or service body. Camping gear, a trailer or an occasional load do not count. Going too heavy on the springs gives a harsh unladen ride and less wheel travel, so if the vehicle is between ratings, pick the lighter one and talk to us if you are unsure.
Bolt-in fitment with no cutting or welding. Pre-assembled front struts arrive built up with new strut tops so no spring compressor is needed. New U-bolts and spring bushes are included for the rear leaf packs. A wheel alignment is required after fitting. A lift of this size is within the limits most states allow without engineering, but check your local rules.
| Make | Model | Series | Years |
|---|---|---|---|
| Toyota | Hilux | GR Sport widebody | 2023 - 2025 |
Suits the Toyota Hilux GR Sport widebody (2023 - 2025). Lift is approximately 20mm over the already-raised GR Sport ride height. Not for the 2026 N90 update.
The complete kit is $2,120 with the standard options; shock upgrades and heavier spring rates add the amounts shown in the dropdowns, and we ship Australia-wide. Tough Dog parts carry the manufacturer's Australian warranty, and a 20mm lift within your state's limits does not void your new-vehicle warranty on its own.
Last updated: 28 October 2026
Genuine Tough Dog suspension from an authorised Australian dealer.
| Brand | Tough Dog 4WD Suspension |
|---|---|
| Kit type | Complete suspension lift kit |
| Lift height | Approx. 20mm front and rear |
| Vehicle | Toyota Hilux GR Sport widebody |
| Build years | 2023 - 2025 |
| Front suspension | Struts and raised coil springs |
| Rear suspension | Raised leaf springs and shock absorbers |
| Included | 2 x Front struts, 2 x Front coil springs, 2 x Rear leaf springs, 2 x Rear shock absorbers, 1 x Rear U-bolt kit, 1 x Rear leaf spring bush kit |
| Shock options | Foam Cell Front & Rear / Foam Cell Front, Adjustable Rear / Adjustable Front & Rear |
| Front spring rates | Comfort - No Accessories / Constant - Suit Bar &/or Winch |
| Rear spring rates | 0-300kg Load / Constant 300kg Load / Constant 500kg Load / Constant 800kg Load |
| Fitment | Bolt-in, no cutting or welding; wheel alignment required after fitting |
| Legal note | Within most state limits without engineering |
| Part number | TD20-GRSPORT |
Suits the Toyota Hilux GR Sport widebody (2023 - 2025). Lift is approximately 20mm over the already-raised GR Sport ride height. Not for the 2026 N90 update. Enter your rego or select your vehicle in the parts finder on this page and we confirm the fitment before the kit ships.
The kit for the Toyota Hilux GR Sport widebody (2023 - 2025) contains 2 x Front struts, 2 x Front coil springs, 2 x Rear leaf springs, 2 x Rear shock absorbers, 1 x Rear U-bolt kit, 1 x Rear leaf spring bush kit. Everything is a Tough Dog part selected for this vehicle, so there is nothing else to buy for a standard 20mm lift. Optional upgrades (shock type, spring rates, pre-assembled struts, upper control arms, greasable shackles) are chosen from the dropdowns above.
Approximately 20mm front and rear on the Toyota Hilux GR Sport widebody with the standard spring rates. Heavier spring rates sit a little higher unladen and settle under a bull bar, canopy or constant load; the final height also varies with tyre size and the condition of the vehicle, and settles after the first few hundred kilometres.
The complete 20mm kit for the Toyota Hilux GR Sport widebody is $2,120 with the standard options; a shock upgrade and heavier spring rates add the amounts shown in the dropdowns. That price covers every part listed above, so there is nothing else to buy for a standard lift, and we ship Australia-wide.
A 20mm suspension lift is within the limit most Australian states allow on a Toyota Hilux GR Sport widebody without engineering approval. Some states count a tyre size increase toward the total lift, so if you are also going up a tyre size check your state's light vehicle modification rules. Keep the lift to this kit's rating and have the wheel alignment done and it stays a road-legal, insurable modification.
Choose front springs in Comfort - No Accessories / Constant - Suit Bar &/or Winch and rear springs in 0-300kg Load / Constant 300kg Load / Constant 500kg Load / Constant 800kg Load to match what the Hilux carries permanently: a steel bull bar and winch on the front, a canopy, drawers, tray or long-range tank on the rear. Only count gear that stays on the vehicle; camping loads and a trailer do not. Towing a caravan or heavy trailer regularly justifies the next rear rate up. If you are between ratings, take the lighter one for a better unladen ride, or call us with your setup.
Foam Cell Front & Rear shocks are the base kit and suit most daily-driven and touring vehicles. Step up to Foam Cell Front, Adjustable Rear (+$60), Adjustable Front & Rear (+$190) if the vehicle does long corrugated roads, tows or carries a constant load: Foam Cell shocks resist fade on corrugations and the adjustable options let you dial the damping up for a load and back down for empty running. Pre-assembled front struts arrive built up with the coil and a new strut top, so there is no spring compressor work and the tired factory top mounts are replaced at the same time; worth it for a home fit. Upper control arms restore the camber and castor range at 20mm of lift and are recommended with a bull bar and winch or larger tyres. Greasable shackles and pins replace the factory rear shackles with serviceable units you grease at each service, which keeps the rear leaf springs moving freely after beach and mud work.
A workshop takes around 5 to 6 hours to fit this kit to a Toyota Hilux GR Sport widebody, plus the wheel alignment. It is a bolt-in job with no cutting or welding, so a competent home mechanic with a hoist or solid stands, a torque wrench and basic hand tools can do it, especially with the pre-assembled strut option. Follow the torque settings in the Tough Dog fitting instructions and book the alignment straight after, or have your local 4WD suspension workshop fit it.
Fitting aftermarket suspension does not void a new-vehicle warranty on its own: under Australian Consumer Law the manufacturer must show that the part caused a specific fault before refusing a claim on that item, and the rest of the warranty is unaffected. Keep the lift within the legal limit for your state, have it fitted and aligned properly, and tell your insurer about the modification so the kit is covered. Tough Dog components are backed by the manufacturer's Australian warranty; ask us for the current terms.
Yes. The 20mm lift changes castor, camber and toe on the Hilux, so book a wheel alignment straight after fitting (upper control arms give the aligner more range if you added them). Re-torque the U-bolts after the first 500 km and grease the shackles at each service and the springs settle to their final height over the first few hundred kilometres.
